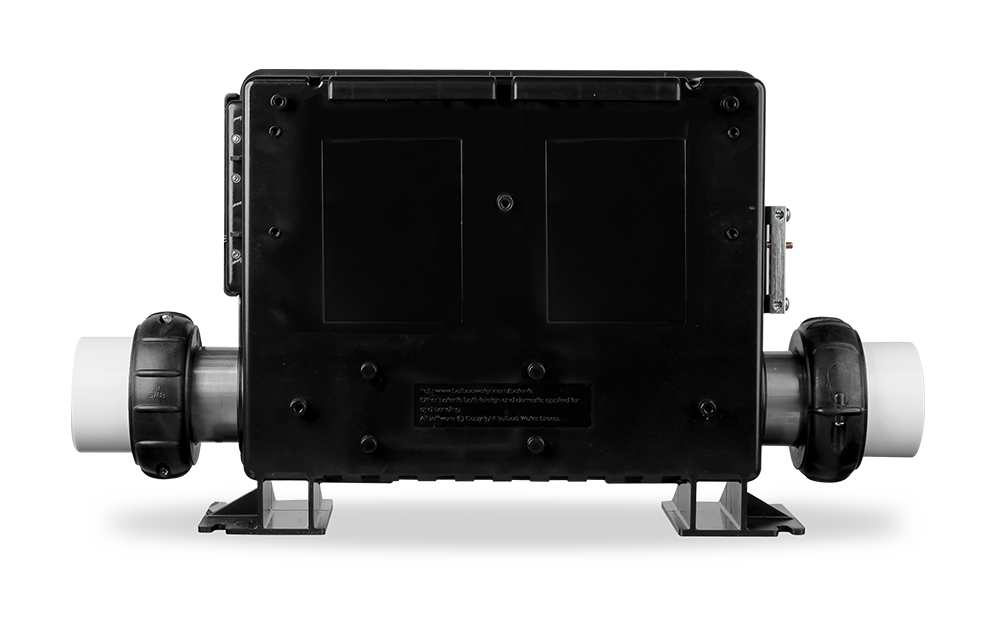

BP501/601

BP501_601_Group_Product_Shots

Meet the BP501/601

  • Overheat Fault Detection for Runaway Pumps / Stuck Relays
  • Supports up to 5.5 kW Heater (60 Hz)
  • Option to add 2 speed pump 3
  • Quick heater connect power plug
  • Wi-Fi Ready
  • Based on Balboa's most popular model's
  • Press & Hold Buttons for ease of use

Now Shipping

We listened and we added the new BP501/601 to the popular BP Series of spa controls. Based on the BP500/600, this new model can run up to a 5.5 kW heater (60Hz systems), supports an expander card to run another pump and has multiple panel jacks on the main board.

Includes Balboa's patented overheat Fault Detection for runaway pumps or stuck relays. The new M7 Plus software design incorporates patented technology using a microprocessor to intelligently monitor the hot tub water temperature and detect a runaway pump or stuck relays. If detected, the system will automatically attempt to shut the power off to the tub to prevent any overheating by trying to trip the GFCI in the circuit (per electrical codes). (BP501 only).

For serviceability, the new BP501/BP601 systems include a new single board configuration and have
Balboa’s new quick connect heater system – no more removing heater straps, just unplug the old heater
and plug in a new one.


M7 Application Guidelines

Downloads:
» BP501/601 Sell Sheet


InstallingHeater_OldandNew


  • Wi-Fi Hardware Connections

    BP501andBP601diagram

    Announcing...

    The all NEW Balboa Water Group Hot Tub application
    for the Android®, iPhone®, iPod touch® or iPad®. More information click here.


    TP400andTP600Group_dm RevolutionTimerImage

    Panels And Overlays

    The sleek new topside panels includes a large easy to read back-lit LCD with simple to follow end user menus.
    With new press and hold button technology, setting temperature and other common tasks have been simplified.
    User navigation is intuitive and easier than ever, reducing customer service help calls.

    Control Panel Manuals:
    TP600 and TP400 Control Panels - Simplified Menus
    TP600 and TP400 Control Panels - Standard Menus

    Panel TP800

    50204-XX*  No Overlay

    50261-XX*  With Overlay (12512)

    Panel TP600

    50056-XX* (TP600 2 Jets with overlay 12198)
    55673-XX* (TP600 with overlay 12101)
    55676-XX* (TP600 no overlay)
    56046-XX* (TP600 15 ft cable no overlay)
    56047-XX* (TP600 15 ft with overlay 12101)


    Panel TP400

    55701-XX* (TP400T no overlay)
    50260-XX* (TP400T with overlay 12511)
    55702-XX* (TP400W no overlay)
    50259-XX* (TP400W with overlay 12510)

    12512_A
    12198 TP400_Overlay_12510
    Overlay 12512 (Jets1, Jets2, Light, Aux)Overlay 12198 (Jet 1, Jet 2, Flip, Warm, Light, Cool)Overlay 12510 (Warm, Cool, Light, Jets)





    12198 TP400_Overlay_12510

    Overlay 12101 (Jets, Aux, Flip, Warm, Light, Cool)

    Overlay 12511 (Temp, Jets, Light, Aux)


    System Specifications

    Voltage Supply: (BP501: 120V or 240V) (BP601: 230V)
    Sensors: M7 patented temperature probes
    Certifications: (BP501: UL recognized) (BP601: NEMKO)
    Spa Lights Controls: 1 Amp Max
    For additional information: coming soon

    BP500Dimensions2

    BP501 System Specifications (UL Recognized)

     System Material Number
    Descriptions
    Pump 1
     Pump 2
    or Blower
    Pump 3
    (Optional with
    Expander Card)
    Heater
    56485-XX* SYSTEM BALBOA BP501G1 800INC – 60 Hz 2 spd or 1 spd with Circ
     1 spd
    NA5.5 kW 800 Incoloy
    56586-XX*
    SYSTEM BALBOA BP501G1 825INC – 60 Hz2 spd or 1 spd with Circ1 spdNA5.5 kW 825 Incoloy
    56487-XX* SYSTEM BALBOA BP501G1 TITAN – 60 Hz2 spd or 1 spd with Circ1 spdNA5.5 kW Titanium
    56480-XX*
    SYSTEM BLBOA BP501G2 800INC2 spd or 1 spd with Circ1 spd2 spd5.5 kW 800 Incoloy
    56486-XX*SYSTEM BLBOA BP501G2 825INC2 spd or 1 spd with Circ1 spd2 spd5.5 kW 825 Incoloy
    56482-XX*
    SYSTEM BLBOA BP501G2 TITANIUM2 spd or 1 spd with Circ1 spd2 spd5.5 kW Titanium
    56582-XX*SYSTEM BALBOA BP501G3 800INC2 spd - non Circ1 spd2 spd5.5 kW 800 Incoloy
    56583-XX*SYSTEM BALBOA BP501G3 825INC2 spd - non Circ1 spd2 spd5.5 kW 825 Incoloy
    56584-XX*SYSTEM BALBOA BP501G3 TITANIUM2 spd - non Circ1 spd2 spd5.5 kW Titanium


    BP601 System Specifications - Single Phase (CE Recognized)

     System Material Number
    Descriptions
    Pump 1
     Pump 2
    or Blower
    Pump 3
    (Optional with
    Expander Card)
    Heater
    56497-XX*
    SYSTEM BALBOA BP601G1 800INC – 50 Hz2 spd or 1 spd with Circ1 spdNA3.0 kW 800 Incoloy
    56498-XX*SYSTEM BALBOA BP601G1 825INC – 50 Hz2 spd or 1 spd with Circ1 spdNA3.0 kW 825 Incoloy
    56499-XX*
    SYSTEM BALBOA BP601G1 TITAN – 50 Hz2 spd or 1 spd with Circ1 spdNA3.0 kW Titanium

    Compatible Plumbing Kits (Coupling nuts and seals included)
    55911

    2” Tailpieces. Compatible Plumbing Kits (Coupling nuts and seals included).

  • * = XX represents the latest system revision. (Ex. XX will be replaced by 01, 02, 03 etc.) When an order is placed the latest system will be pulled.
