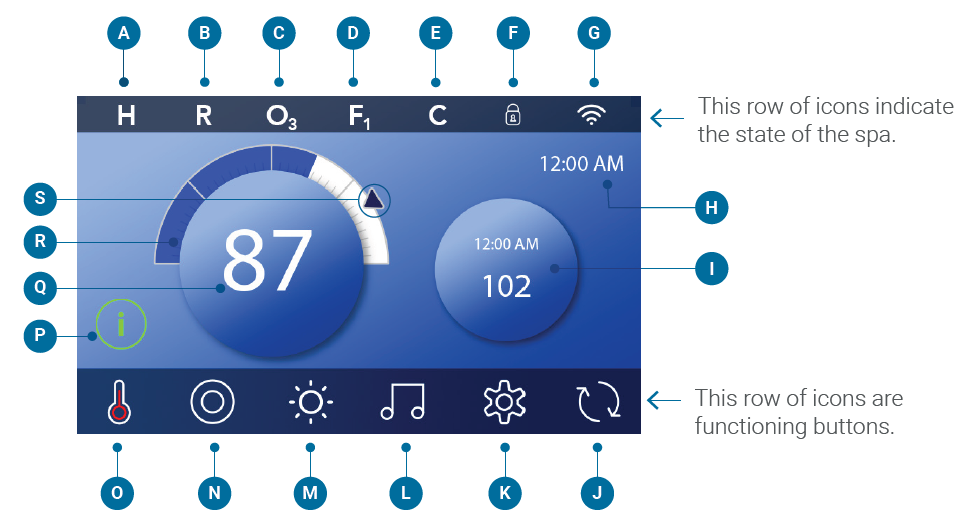

A – Temperature range
High: H
Low: L
B – Heat mode
Ready: R
Rest:
Ready-in-Rest: RR
C – Ozone is running: O3
D – Filter cycle is running
Filter cycle 1: F1
Filter cycle 2: F2 (optional feature)
Filter cycles 1 & 2 running together: F12
E – Cleanup cycle is running
(Optional Feature)
F – Panel is locked and/or
Settings is locked
G – WiFi (local or cloud connection)
H – Time-of-Day
I – Secondary Button/Display
J – Invert Display
K – Settings
L – BBA3 (Balboa Bluetooth Audio)
M – Light (or Chromazone if installed)
N – Spa
O – Heater Status
P – Messages (May Appear)
Information
Reminder
Error – normal error or warning
Error – spa will not function until fixed
Q – Water Temperature
R – Water Temperature Bar
S – Set Temperature Arrow
The system configuration determines the number of icons that may appear on the Main Screen. Your Main Screen may have fewer or different icons.
