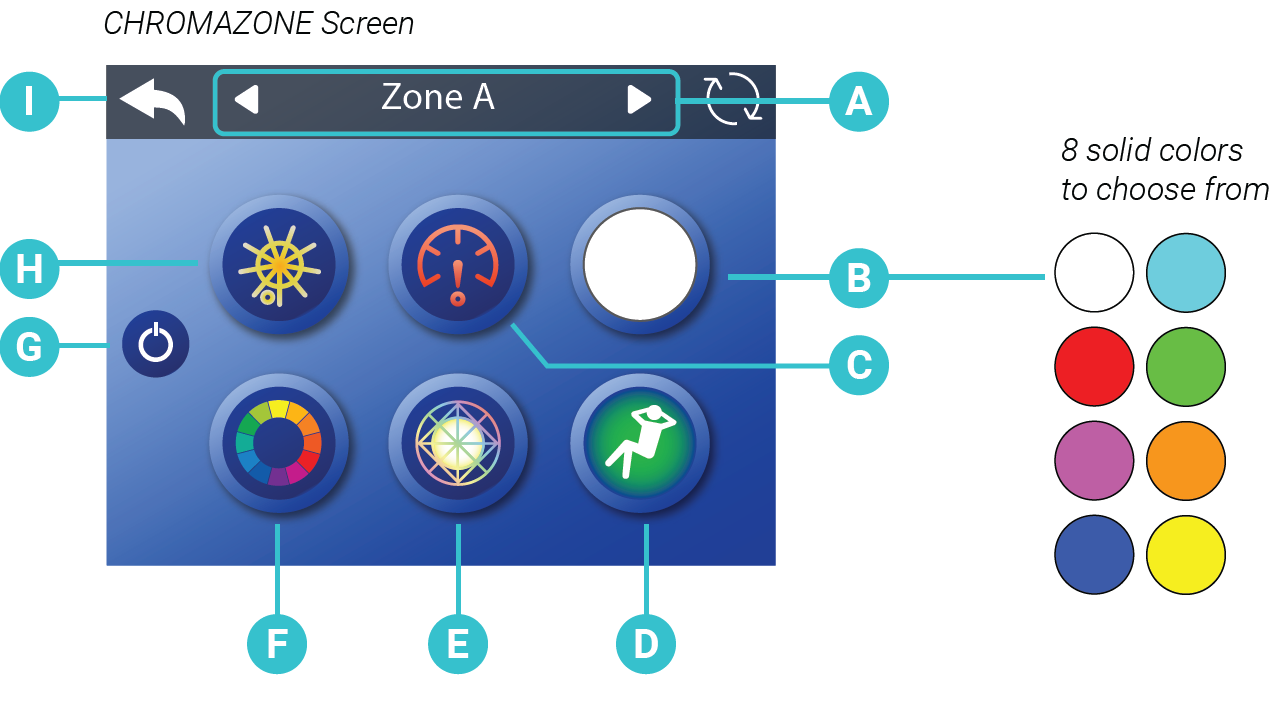

REVIEW SCREEN
A – Selected zone or group.
B – Selected solid color.
C – Speed control for light patterns.
D – Light pattern: Lounge. This smoothly cycles through a soothing pattern.
E – Light pattern: Party. This smoothly cycles through a festive pattern.
F – Light pattern: Color Wheel. This smoothly cycles through the full color spectrum.
G – power icon. It powers On/Off all user-controlled lights. If the icon has a white ring, at least some user-controlled lights are powered On. If the button doesn’t have a white ring, all user-controlled lights are powered Off.
H – Brightness control. If brightness is reduced all the way, the selected zone (A) will turn Off. In this example, Zone A would turn off.
I – Back icon.
OVERVIEW & TERMINOLOGY
What is a zone? A zone is a group of LED lights. has three zones with the following names:
Zone A
Zone B
Zone C
What can a zone do? A zone can display one of eight solid colors. Solid colors are customizable as well. Zones can be controlled simultaneously by grouping them together. A zone can display one of the three following light patterns:
1 – Color Wheel
2 – Party Light
3 – Lounge Light
Brightness is adjustable for color patterns and solid colors. Speed is adjustable for color patterns.
A zone can be assigned one of the following special functions:
1 – Status Pro: the spa status is displayed as a color of light.
2 – Water Temperature: the spa water temperature is displayed as a color of light.
